Fence Materials/Components
MOST COMPONENTS ARE AVAILABLE AT www.kencove.com

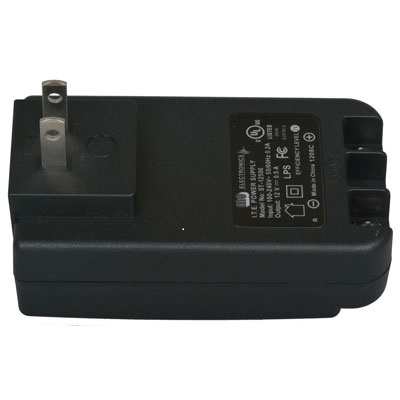

POWER ADAPTOR
Specifications:
* Input: 100VAC-240VAC 50~60Hz
* Output: Regulated 12VDC; 500mA
* Two Screw Terminal Outputs
* Short Circuit Protection, Over Voltage Protection
* FCC Approved
* Ultra Lightweight
* Dimensions: 2.0 in. x 3.75 in x 1.50 in.
This is a standard plug-in transformer that provides 12 volt DC power to the Fence Hawk. We recommend this component if you do not have 12 volts DC available from your security alarm or another source.
The output of this plug-in device provides the proper voltage (12 to 12.5 volt DC) to keep your 12 volt backup battery charged.
For best results use a 12 volt battery to power your Fence Hawk fence monitor where this “plug-in” unit is used to keep the battery charged at all times. The 12 volt battery also acts as additional protection against spurious spikes that occur within all systems.

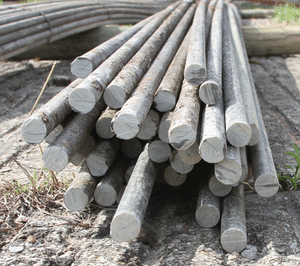

CONSTRUCTION POST
Fiber Support Rods
Specifications:
1″ or 1 1/4″ Fiberglass rod

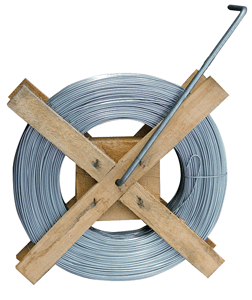

FENCE WIRE
14 Gauge High Tensile Electric Fence Wire
14 gauge high-tensile wire
Class III galvanized high-tensile wire
1,000 and 2,500 foot coil, 5,000′ coil
16 Gauge High Tensile Electric Fence Wire
1,000, 3,000 and 6,000 ft. coils of 16 gauge high tensile wire make it possible to build fences quickly and at low cost.
This is our favorite wire for perimeter security fences. It’s stronger than standard soft iron wire, is galvanized and polished, making it shiny. It goes up with fewer kinks and makes a very good-looking fence.

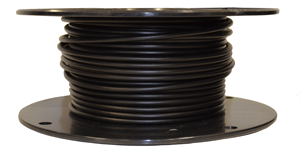

16 Gauge Underground Wire
Specifications:
165′ and 330′ coil 16 Gauge |Underground Wire
* Double-insulated
* For high-joule usage
* UV-stabilized polyethylene
high voltage wire, single conductor. The insulation type makes it suitable for underground burial.

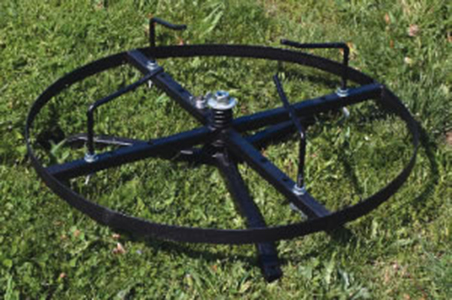

Spinning Jenny with Brake
The IFA Spinning Jenny features an adjustable brake to control over-spin when you stop pulling the wire.
May be placed flat on the ground or bolted to a cart or truck bed.
Three legs in the base give great stability. Four adjustable arms fit many diameter coils.
FENCE TENSIONER

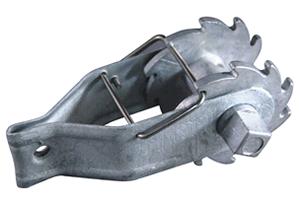

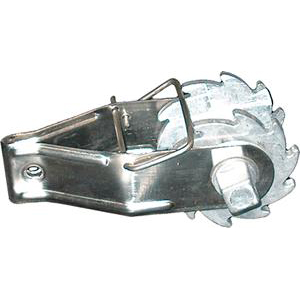

Donalds Galvanized Strap Wire Tensioner
The Donalds Wire Tightener has a square end to allow tensioning with a crescent, box or open end wrench.
Donalds Stainless Wire Tightener
Specifications:
The Donalds Wire Tightener has a square end to allow tensioning with a crescent, box or open end wrench.

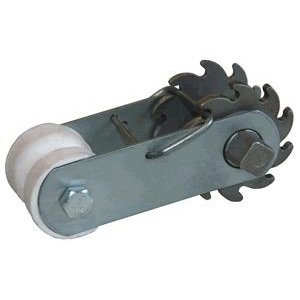

Insulated Wire Tightener
The Insulated Wire Strainer, made with a reinforced polymer insulator and rugged aluminum cog, eliminates the need for end post insulators. The Dacromet® coated straps provide strength and longevity.
* Perfect for end post wire termination and tightening
* Rugged enough for high strain applications
* Donalds-style strainer
* Breaking strength: 1500 lbs

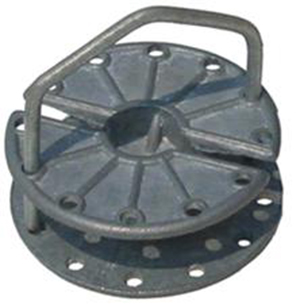

KIWI Daisy On-Line Strainer
Made in the USA with a solid zinc cog and class 3 galvanized clip.
The KIWI Online Wire Strainer is our strongest non-splicing strainer.
FENCE SPRING

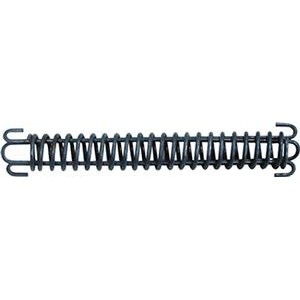

Mini Tension Spring
Spring is Galvanized or Stainless Steel and approximately 1″ diameter by 7 1/2″ long
FENCE INSULATOR

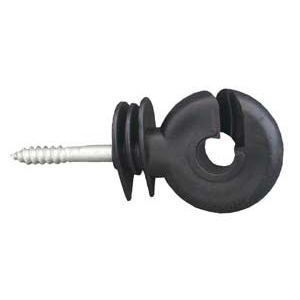

Ring Insulators
Our Screw-In Ring Insulators have been re-designed to incorporate a steel reinforced ring to give superior strength.

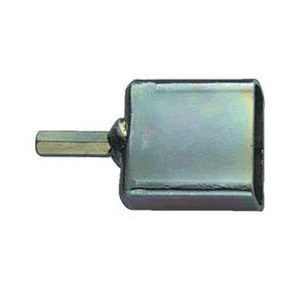

Ring Insulator Tool
This tool makes it quick and easy to install ring insulators for offset electric wires.
Kiwi Double-U End Post Insulator
Specifications:
Kiwi Double-U Insulators are ideal for end and corner posts. They have metal embedded in the plastic to keep the wire from cutting through.
Chain Link Insulator
Specifications:
Our Chain-link Offset is a versatile insulator that attaches to existing chain-link fences to hold electrified wire about 4.5 inches away from the fence.
Lag Post Insulator
Specifications:

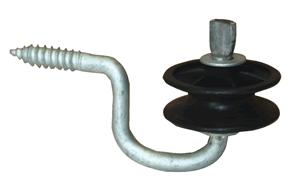

This Lag Corner Insulator has an L-shaped 1⁄4″ diameter screw and is ideal for electric rope or twine.

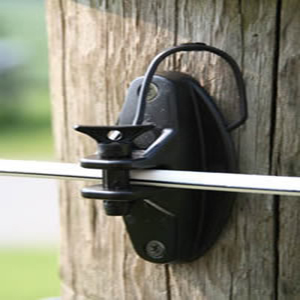

Pin Lock Insulators
Specifications:
Our Double Nail Pin-lock Insulators have a large spark flange around the base to prevent arcing.
The wire is held in a slot by a removable pin with plenty of space for wire movement to keep friction to a minimum.
Porcelain Donut Insulator
These donut-shaped insulators work well with high-tensile fences and are used at corners, dips and rises. Attach by tying them to posts with high-tensile wire or mount them on a lag screw.

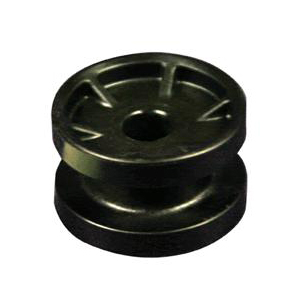

Plastic Donut Insulator
These donut-shaped insulators work well with high-tensile fences and are used at corners, dips and rises. Attach by tying them to posts with high-tensile wire or mount them on a lag screw.

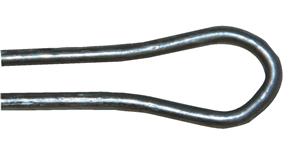

Cotter Pins
Our Cotter Pins are an economical way to fasten the wire to line posts or spacer battens. Holes must first be drilled in the rods or wood. Clip the pin onto the wire, put the 2 legs of the pin through the hole and bend the ends back to the fence wire. 14 gauge, class 3 galvanized. These cotter pins are perfect to use with ½” fiberglass drilled posts.
FENCE RELAY
KRPA Relay with Socket
Purchase at www.onlinecomponents.com
This takes the place of a Pam Relay if you want different things to happen in the event of an alarm:
For example:
turn on a siren
turn on lights
make a latching circuit
turn on a large contactor
anything that can be switched (we can help you with the wiring diagram)

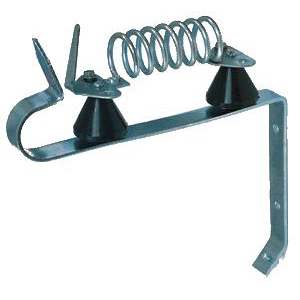

Lightning Diverter – Adjustable
This design features a choke coil and a lightning arrestor combination which is the two essential components of an effective lightning diverter.
The choke coil slows the surge of electrical energy by inductive forces created in the coil.
When lightning strikes, the pool of energy searching for the ground jumps the gap in the arrestor and finds the fastest route to the ground.
FENCE CRIMP

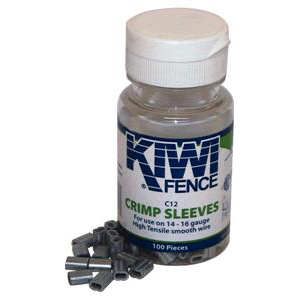

Kiwi Crimp Sleeves, Gritted 14 – 16 gauge
The C12 crimp sleeve is designed to join 14 to 16 gauge smooth wire
These sleeves are small and easy to work with
Made in USA

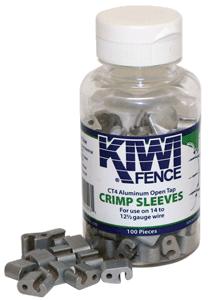

Kiwi Open Tap Crimp Sleeves
The open tap crimp sleeve is ideal for making permanent electrical connections on 12½ and 14 gauge wire.
Made in USA.

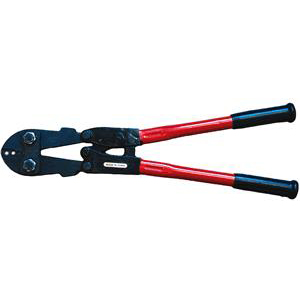

4-Slot Crimping Tool
Carefully inspected and guaranteed for five years of proper use.
Test pulls of crimp sleeves are done with these tools to be sure our inspections are giving you proper strength.
FENCE METER

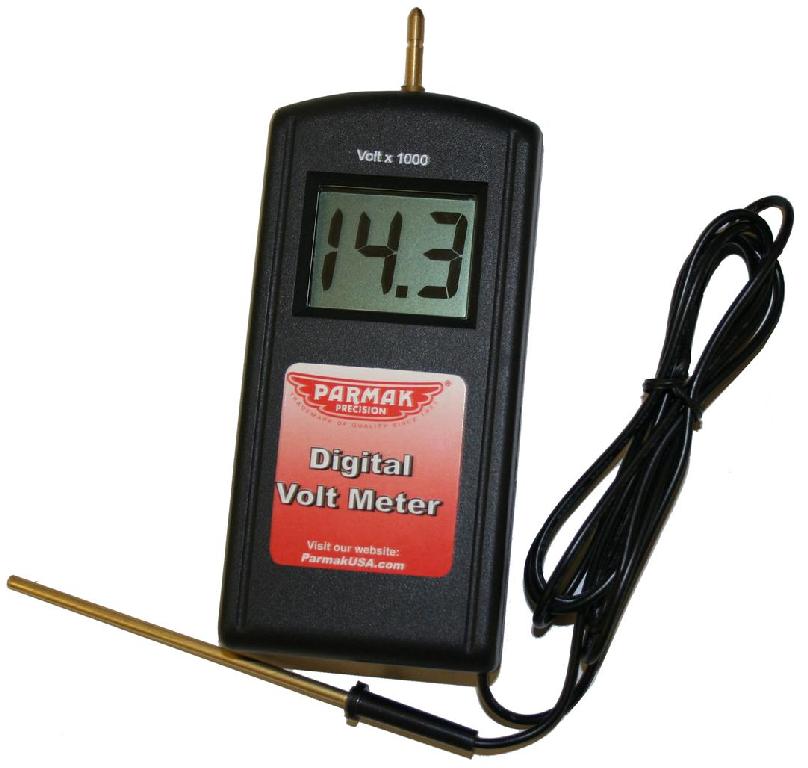

Parmak Precision Digital Electric Fence Tester
Purchase at www.parmakusa.com
* Easy to read digital design
* Reads up to 19.9 kilovolts
* Matches the performance meter on Parmak fence chargers
* For use with all low impedance fence chargers
* Measures fence performance to help diagnose problems
* Requires one 9v battery to operate (not included)

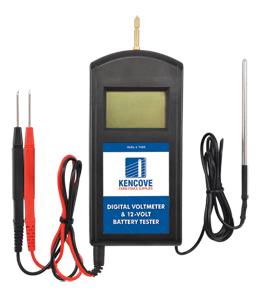

Kencove – Fence Voltage Tester
Purchase at www.kencove.com
* Measures up to 12,000 volts
* Easy-to-read LCD display
* Includes 9-volt battery
* One-year warranty
FENCE CHARGER

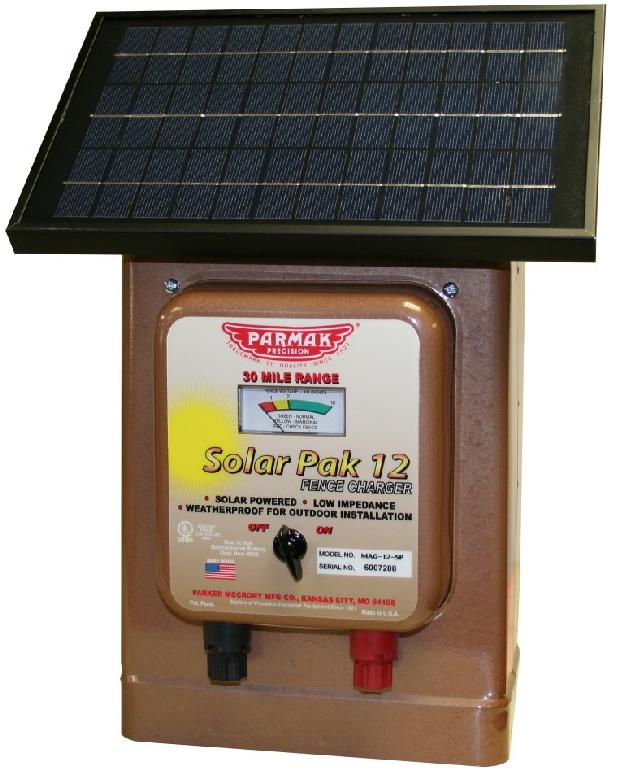

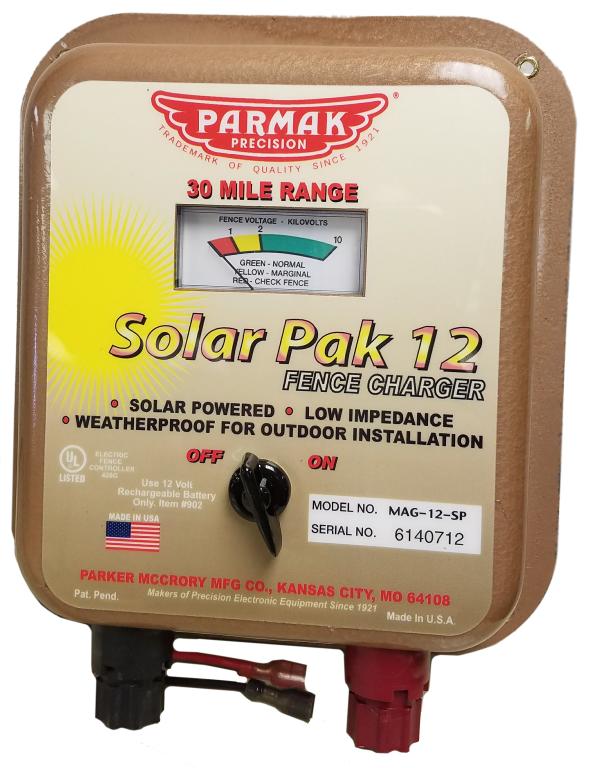

Parmak MAG-12-SP 12V SOLAR ENERGIZER
Purchase at www.parmakusa.com
Parmak Magnum Solar-Pak 12 Electric Fence Charger
Model MAG.12-SP
12 volt – Solar/Battery Operated – 30 miles
Featuring the latest state-of-the-art solar panel with superior charging power the Parmak Magnum 12 Solar-Pak eliminates battery recharging, thereby saving you time and money. The sun`s energy charges the fencer by day and a sealed 12 volt rechargeable battery powers the fencer at night. Battery included. The Parmak Magnum 12 Solar-Pak was designed, developed, and is manufactured exclusively by Parmak. 100% American made. Uses the same advanced and exclusive circuitry as the Parmak Magnum 12, including Parmak`s exclusive built-in performance meter. Our totally new and improved solar panel uses free energy from the sun to provide maximum shock . . . longer life. No operating costs! Power line convenience with a battery fencer. Full 3 year warranty covers damage caused by lightning. Twelve-volt battery warranted one year.
NEW EXCLUSIVE FEATURES NOW AVAILABLE WITH THE PARMAK MODEL MAG 12 SP
When the Mag 12 SP is first turned to ON position, the performance meter on front of fence charger now performs 3 exclusive functions: 1. Meter operation test 2. Battery charge level test 3. Fence charger voltage output on fence.
Specifications:
1. Meter Operation Test: This test will sweep meter needle to full scale and back. This test shows that meter movement is smooth and able to indicate full scale. If meter is functioning correctly the needle will go to the top of green (full scale) and then return to bottom of red.
2. Battery Charge Level Test: The meter will indicate the charge level of the battery. If the meter indicates “RED” the battery should be recharged before operating fence charger. If the meter indicates “YELLOW” the battery is low and should be recharged soon. If the meter indicates “GREEN” the battery has a good charge. To get the most accurate reading of the battery charge level, the battery should be in a no load/no charge state. Battery charge level will be indicated for the first 5 seconds immediately following the Meter Operation Test.
3. Voltage Output: After battery charge level test, the performance meter will begin to indicate amount of voltage on fence: GREEN— good voltage on fence— YELLOW fence voltage low, check fence— RED no voltage on fence, check fence immediately
Additional Features:
– Low impedance for maximum power, longer life
– Performance meter that shows condition of fence
– Ideal for large pastures
– State-of-the-art solar panel for superior charging power
– Complete with sealed 12 volt rechargeable battery
– Weatherproof, portable outdoor model
– Charges up to 30 miles of fence – 3.1+ joules*
– UL Listed
Parmak MAG-12SP-UO 12V ENERGIZER
Purchase at www.parmakusa.com
Solar/Battery Operated Charging Unit ONLY
Do you have an older out of warranty Parmak 12 volt solar fence charger that you would like to update?
– Replacement unit ONLY for Parmak model
– MAG12-SP volt solar fence chargers.
– Will fit inside all Magnum 12SP battery cases
– Must be used as a replacement unit – No weather strip provided
– Battery wire connectors included
– Charges up to 30 miles of fence
– UL Listed
To replace the fence charging unit:
– Simply remove the solar panel lid
– Remove the internal battery
– Remove unit battery case screws (top left and top right on the battery case), and remove old unit from the battery case.
– Disconnect wires the red and black wires from the battery and the solar panel.
– Connect the new charging unit wires to the solar panel wires using the new splicing clamps (red wire to red wire and black wire to black wire).
– Place the new unit in the the battery case and secure with the two case screws.
– Reconnect the battery to the solar panel wires.
– Turn the fence charger switch on and check performance meter on the fence charger for proper operation.
– If proper operation, turn off fence charger and re-install battery into the case and re-attach the solar panel lid.

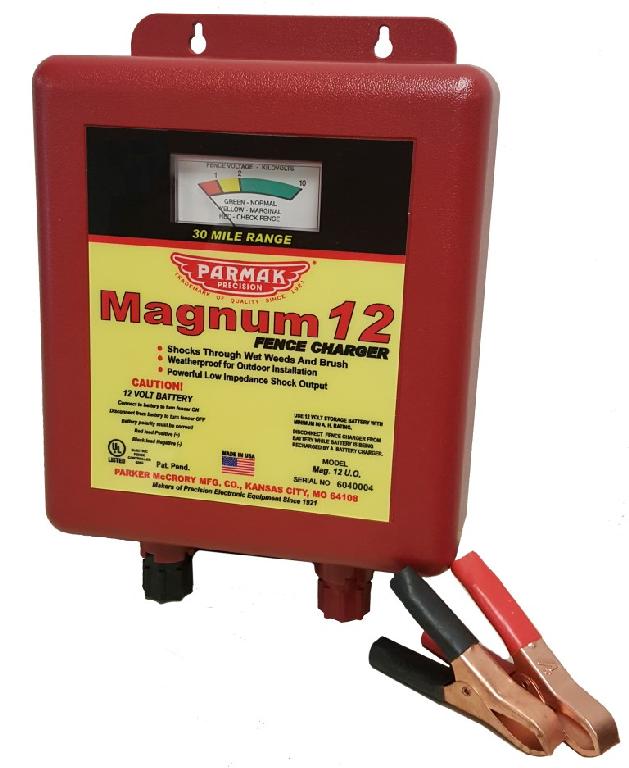

Parmak MAG-12-UO Electric Fence Charger
Purchase at www.parmakusa.com
Parmak Magnum 12 Electric Fence Charger
Model MAG.12 U.O.
12 volt – Battery Operated – 30 miles
The newly updated Parmak Magnum 12 electric fence charger features Parmak`s exclusive built-in performance meter tells you the exact condition of your fence line as well as the condition of your battery. It takes the guess work out of electric fencing. With more power than you ever imagined possible from a battery fencer, the Magnum 12 features output equal to power line operated models. Shocks through wet weeds and brush. No moving parts means years of dependable, trouble free services. The most economical 12-volt solid state fencer operation on the market. The Magnum 12 provides up to three months of continuous operation between battery charges. Weatherproof, portable outdoor model for installation anywhere on your farm.
NEW EXCLUSIVE FEATURES NOW AVAILABLE WITH THE PARMAK MODEL MAG 12 UO
When the Mag 12 UO is first connected to a 12 volt storage battery, the performance meter on front of fence charger now performs 3 exclusive functions: 1. Meter operation test 2. Battery charge level test 3. Fence charger voltage output on fence.
1. Meter Operation Test: This test will sweep meter needle to full scale and back. This test shows that meter movement is smooth and able to indicate full scale. If meter is functioning correctly the needle will go to the top of green (full scale) and then return to bottom of red.
2. Battery Charge Level Test: The meter will indicate the charge level of the battery. If the meter indicates “RED” the battery should be recharged before operating fence charger. If the meter indicates “YELLOW” the battery is low and should be recharged soon. If the meter indicates “GREEN” the battery has a good charge. To get the most accurate reading of the battery charge level, the battery should be in a no load/no charge state. Battery charge level will be indicated for the first 5 seconds immediately following the Meter Operation Test.
3. Voltage Output: After battery charge level test, the performance meter will begin to indicate amount of voltage on fence: GREEN— good voltage on fence— YELLOW fence voltage low, check fence— RED no voltage on fence, check fence immediately.
Addition features:
• Performance meter that shows condition of battery and fence line
• Low impedance for maximum power, longer life
• Compact design, weatherproof, portable – outdoor model
• Use with 12 volt storage battery (battery clamps included)
• Ideal for livestock or predator control
• Medium to large pastures
• UL Listed
• Charges up to 30 miles of fence – 3.1 joules*
